basic introduction

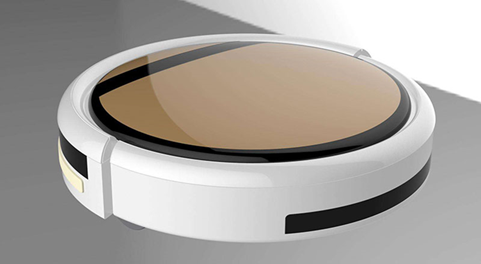

The sweeping machine refers to the sweeping robot. In the near future, it will become an essential cleaning helper for every family like white goods. Products will also develop from primary intelligence to a higher degree of intelligence, gradually replacing manual cleaning.

With the continuous improvement of domestic living standards in China, the floor-sweeping robots that have been sold in the European and American markets have entered the homes of ordinary people and are accepted by more and more people. However, ordinary consumers are paying more and more attention to the safety and quality of sweeping robots. Sweeping robots must pass the test and certification of relevant national authorities before they can enter the market.

Sweeping robot inspection standard

1. Detection Standards of Sweeping Robots: Reference Standards for Sweeping Robots:

Comply with "3C certification requirements, CNCA-01C-016: 2010" Electrical and Electronic Products Compulsory Certification Implementation Rules-Household and Similar Use Equipment ";

GB4706.1-2005 "Safety of Household and Similar Electrical Appliances Part 1: General Requirements";

GB4706.7-2004 "Safety of Household and Similar Electrical Appliances Part 2: Special Requirements for Vacuum Cleaners and Water-absorbing Cleaners";

GB / T26125-2011 "Test Methods for Six Restricted Substances in Electronic and Electrical Products";

GBT22084.1-2008 storage batteries and storage batteries containing alkaline or other non-acidic electrolytes-portable sealed single storage batteries Part 1: nickel-cadmium batteries;

GBT22084.2-2008 storage batteries and storage batteries containing alkaline or other non-acid electrolytes-portable sealed single storage batteries Part 2: Metal nickel hydride batteries;

GBT18287-2013 General specification for lithium-ion batteries and battery packs for mobile phones.

2. The quality inspection items of sweeping robots include:

Signs and instructions

Protection against touching live parts

Input power and current

Leakage current and electric strength at operating temperature

Moisture, heat and flame resistance

Leakage current and electric strength

Structure

Power connection and external cord

Grounding measures

Clearance, creepage distance and solid insulation

ROHS

Battery capacity

Sweeping robot inspection required information

1. Application

2. Packaging statement

3. A complete set of circuit diagrams: including circuit schematic diagram and electrical connection diagram (size 4A)

4. Product instruction manual

5. Product parts list

6. Product three-dimensional assembly drawing (structure drawing), main parts structure drawing (size 4A)

7. Product business card

8. Some other product description materials

Sweeping robot quality inspection report process

1. Initiate a test application for ZRLK testing online, then fill out the corresponding application form, and fill in the product type and number of the robot cleaning robot clearly

2. Negotiate the items, cycle and cost of the robot sweeping inspection

3. After negotiation, send the sample directly to ZRLK testing laboratory

4. Our company starts testing and then issues an electronic report to the customer for verification

5. Verify the correctness, issue a paper report and send it to the customer

Our advantage

1. With a professional qualification and experienced expert technical team, we can provide you with professional consultation and services.

2. Have advanced laboratory equipment to ensure the accuracy and reliability of test data.

3. As a third-party testing and certification organization trusted by customers worldwide, we are your certificate of quality.
